General Valve dimensions and materials

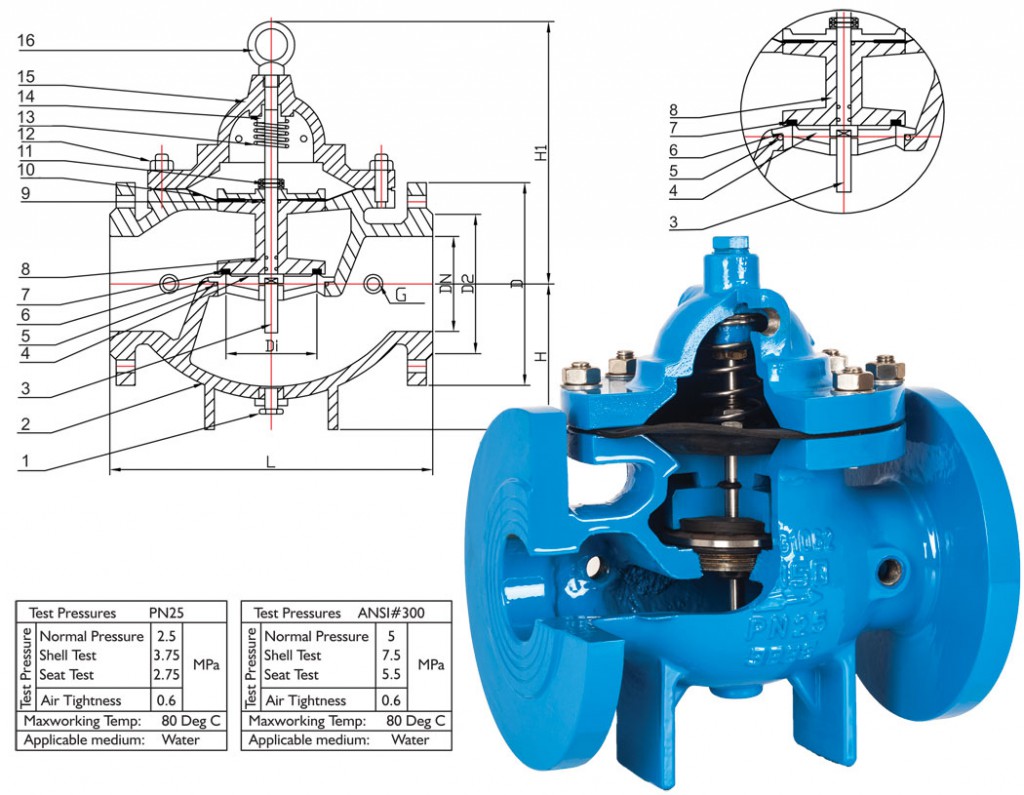

valve dimensions materials
PN25 (Carbon Steel)
dnLDDiD2HIHKg
50213165501021808514
802552006513820010521
1003002358016221512531
15036530012821824016060
200465360175278280190118
250530425232335320215170
300635485280395360245275
350685555285450410290320
400765620350505650315460
ANSI#300 (Carbon Steel)
dnLDDiD2HIHKg
5026716550921908519
803182106512721010540
1003562548015823013052
150444318128216300160105
200559381175270340190205
250622444232324380230290
300711521280381400260470
350762584285413480300580
400838648350470630330860
Materials of construction
ItemDescriptionMaterial PN25ANSI #300Stainless SteelSpecial
1PlugBrassBrass316 Stainless Steel316 Stainless Steel
2Valve BodyWCB Cast SteelWCB Cast Steel316 Stainless Steel316 Stainless Steel
3Spindle304 Stainless Steel304 Stainless Steel316 Stainless Steel316 Stainless Steel
4Seal WasherWCB Cast SteelWCB Cast Steel316 Stainless Steel316 Stainless Steel
5“O”-RingNBRNBRNBRViton
6Seat304 Stainless Steel304 Stainless Steel304 Stainless Steel316 Stainless Steel
7SealEPDMEPDMEPDMViton
8Seal RetainerWCB Cast SteelWCB Cast Steel304 Stainless Steel316 Stainless Steel
9“O”-RingNBRNBRNBRViton
10DiaphragmEPDMEPDMEPDMEPDM
11Shaftnut & Locknut304 Stainless Steel304 Stainless Steel304 Stainless Steel316 Stainless Steel
12Bonnet StudsA2 – 70A2 – 70A2 – 70A4 – 70
13Valve Spring302 Stainless Steel302 Stainless Steel302 Stainless Steel316 Stainless Steel
14Bonnet BushBronze H62Bronze H62304 Stainless Steel316 Stainless Steel
15Valve CoverWCB Cast SteelWCB Cast Steel304 Stainless Steel316 Stainless Steel
16Eye BoltEN8 Electro PlatedEN8 Electro Plated304 Stainless Steel316 Stainless Steel
